Biomass
Water Tube Solid Fuel Firing Boilers
-

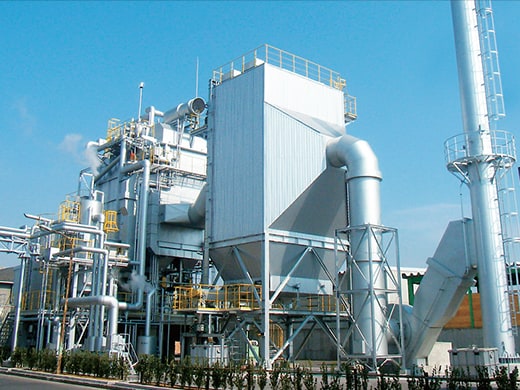

Large sized biomass firing boilersH-Type- Fuel
- Coal and biomass fuels
- Steam Flow (rated)
- 3,500-300,000 kg/h
- Application
- For power generation, plywood mills, sugar mills
-

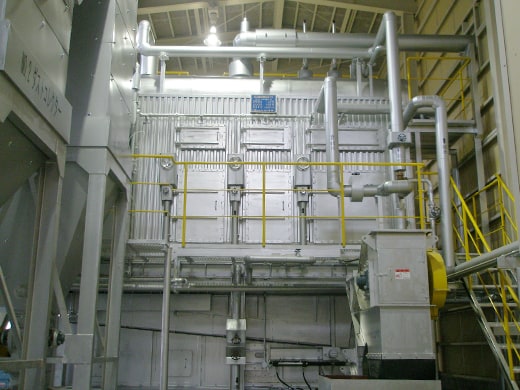

Small sized biomass firing package boilersHAS-Type- Fuel
- Coal and biomass fuels
- Steam Flow (rated)
- 600-4,800 kg/h
- Application
- For power generation, plywood mills, sugar mills
General industry, etc.
Water Tube Package Boilers
-

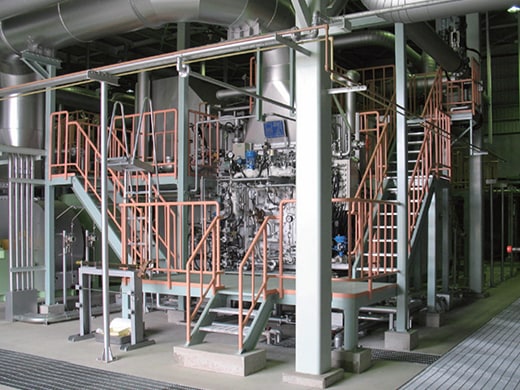

Small and medium (capacity) sized package boilersNHA-Type- Fuel
- City gas and heavy oil
- Steam Flow (rated)
- 1,200-30,000 kg/h
- Application
- General industry, hospitals, buildings
-

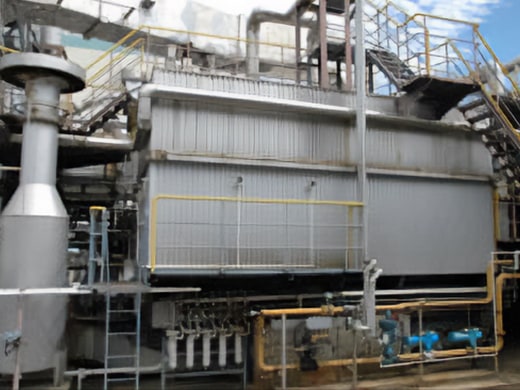

Large (capacity) sized package boilersHDN-Type- Fuel
- City gas and heavy oil
- Steam Flow (rated)
- 15,000-60,000 kg/h
- Application
- Boiler for power generation
-

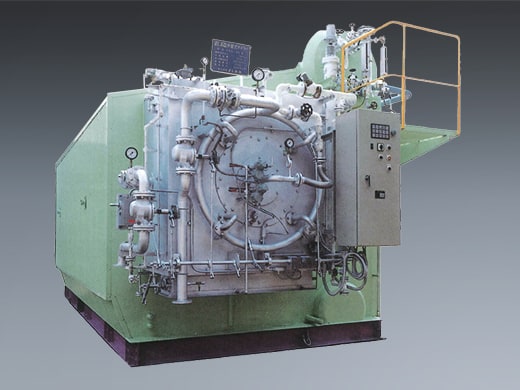

Low NOx gas firing boilersYSG-Type- Fuel
- City gas, propane, butane
- Steam Flow (rated)
- 10,000-30,000 kg/h
- Application
- Space-saving package
Waste heat recovery
Water Tube Waste Heat Recovery Boilers
-

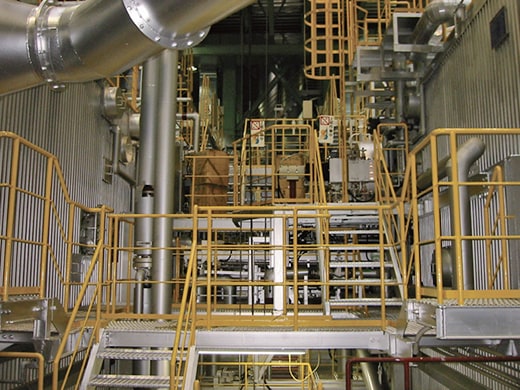

For waste gas containing high temperature and high density dustWA-Type- Application
- For the municipal waste incinerator,
or the waste gas with large dust content - Applicable range
- Gas temperature at inlet: Less than 1,200℃
-

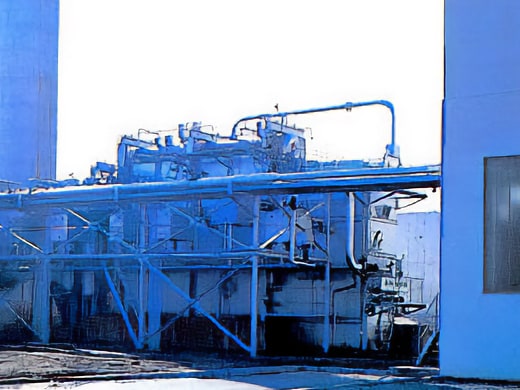

For waste gas containing high temperature and high density dustWAD-Type- Application
- For the municipal waste incinerator,
or the waste gas with large dust content - Applicable range
- Gas temperature at inlet: Less than 1,200℃
-

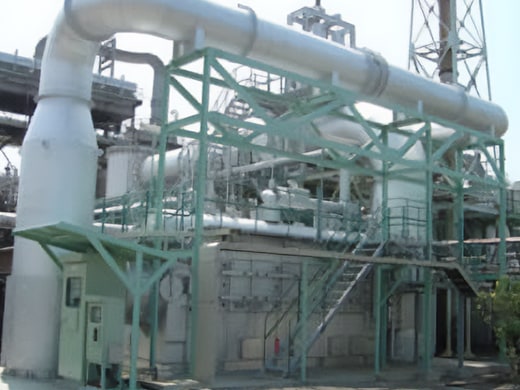

For waste gas containing medium density dustWD-Type- Application
- For wide range of waste gas with large dust content
- Applicable range
- Gas temperature at inlet: 350-1,000℃
Nature of dust: Large dust content and its tenacity is small.
-

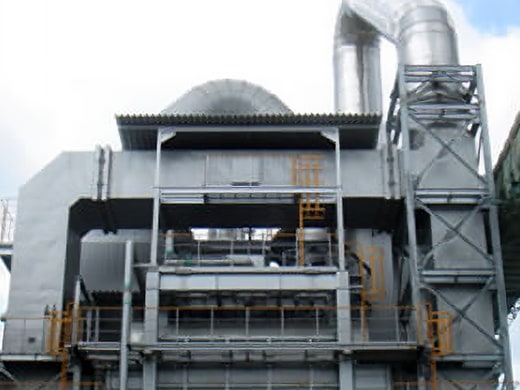

For waste gas containing little dustWB-Type- Application
- For the waste gas with small dust content (in common)
- Applicable range
- Gas temperature at inlet: 350-1,000℃
Nature of dust: Soft and its tenacity is small.
Co-generation
Water Tube Exhaust Heat Recovery Boilers
-

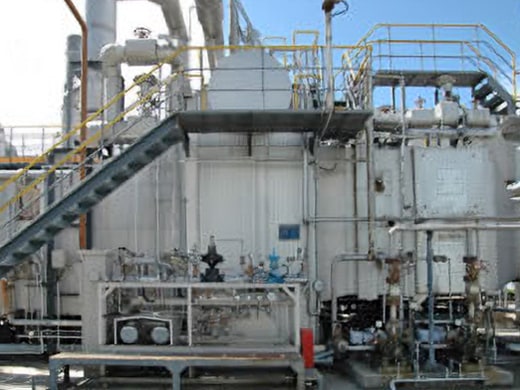

For clean exhaust gas (using fin tubes)WBF-Type- Application
- Clean exhaust gas from gas turbine, gas engine, and so on
- Applicable range
- Gas temperature at inlet: Less than 600℃
Dust content in flue gas: Less than 0.2 g/Nm3
-

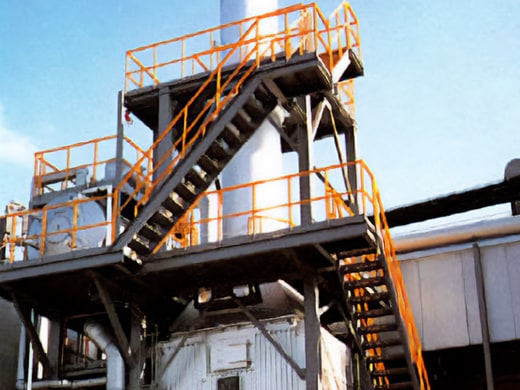

Forced circulation type/for low and medium density dust exhaust as
(corresponding to fin tubes)WEF-Type- Application
- Large capacity gas turbine and diesel engine, co-generation boiler,
industrial furnace, cooler at steel plant, and so on. - Applicable range
- Gas temperature at inlet: Less than 1,000℃
(with supplemental burning)
Dust content in flue gas: Less than 0.5 g/Nm3
Capacity of exhaust gas: No limit
